Allnic Audio - T 2000 30th Vollverstärker
Produktnummer:
ALL-848999-NIC

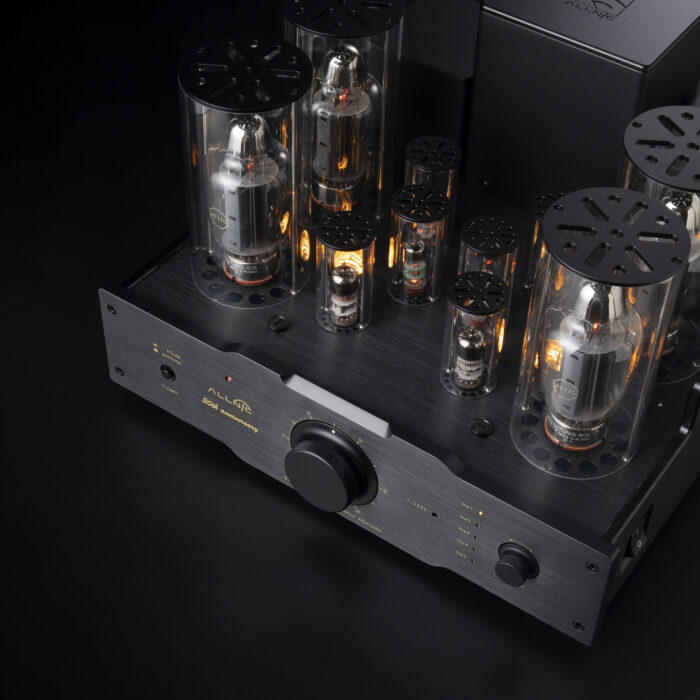

T-2000 30th Anniversary Stereo Integrated Amplifier mit 120W KT170 Push-Pull Röhrenverstärker, Full Engagement Output Transformers und Remote Control Attenuat
120W Röhrenverstärker
KT170 Push-Pull
Full Engagement Transformers
Remote Control Attenuator
Allnic Audio
15.900 €
Sofort verfügbar, Lieferzeit: 5-7 Tage
Produktinformationen
The T-2000 30th Anniversary has the following features:
- 120 watts of high power output. The T-2000 30th Anniversary is a push-pull, KT170 power tube based stereo integrated amplifier.
- Remote controlled 61-step constant impedance silver contact attenuator. The T-2000 30th Anniversary employs this house made quality attenuator instead of standard, outsourced carbon film potentiometers. The Allnic attenuator provides complete channel balance and less distortion.
- Powerful Driving Circuitry. Allnic believes in the importance of using high-quality, low noise and powerful driving circuitry in all its amplifying devices. The T-2000 30th Anniversary uses only two stages of driving circuit.
- Full Engagement Output Transformers. Conventional output transformers use pre-set secondary windings to accommodate 4, 8 and 16 ohm loudspeaker loads. However, these conventional transformers utilize only one secondary winding at a time, while the other secondary windings remain idle. This approach has two adverse effects. First, the output transformers are not working at their maximum efficiency, reducing their output relative to their potential. Second, the idle windings are not actually idle; they are subject to parasitic oscillations, producing their own signal. This undesirable electrical information is additive to the transformer's output, distorting the amplified signal going to the loudspeaker. Allnic's Full Engagement transformers address these issues by having 4 independent, secondary windings that are always fully connected, never idled. This means that all secondary windings are always connected to your loudspeakers, regardless of which output switch position you use (4 ohms or 8 ohms or 8 ohms or 16 ohms, depending on the factory configuration you have selected). The result is that there is neither a loss of transformer output efficiency, nor the introduction into the output signal of distortion from parasitic oscillations of the secondary windings.
- Large Nickel/FeSi Core Output Transformers. As with our other models, Allnic uses very large output transformers (114 mm) with nickel, mixed with FeSi, cores. This provides for higher inductance with fewer windings than other designs can provide and results in the great benefit of an extremely wide range of output frequencies.
- Soft-start Circuitry. Allnic uses soft start circuitry that, after sufficient warm-up only, provides the high voltage supply to the plate of each tube. This protective design results in prolonged tube life and fewer and less frequent issues with tube performance.
- Analogue Power Tube Current Monitors. In order to provide constant current (bias) monitoring for the power tubes, Allnic uses a separate analogue current meter for each tube. The meters make it exceptionally easy to see the status of each tube at any time. The meters offer a simple, unambiguous indication of each tube's status compared to conventional LED bias monitors.
Technische Daten
Audio Performance
Output Power
120W (8Ω load, at 1kHz)
Distortion
0.17% at 1kHz at 10W
Frequency Response
20Hz-20kHz Flat
S/N Ratio
-80dB (CCIR, 1kHz)
Damping Factor
8 at 8Ω load at 1kHz

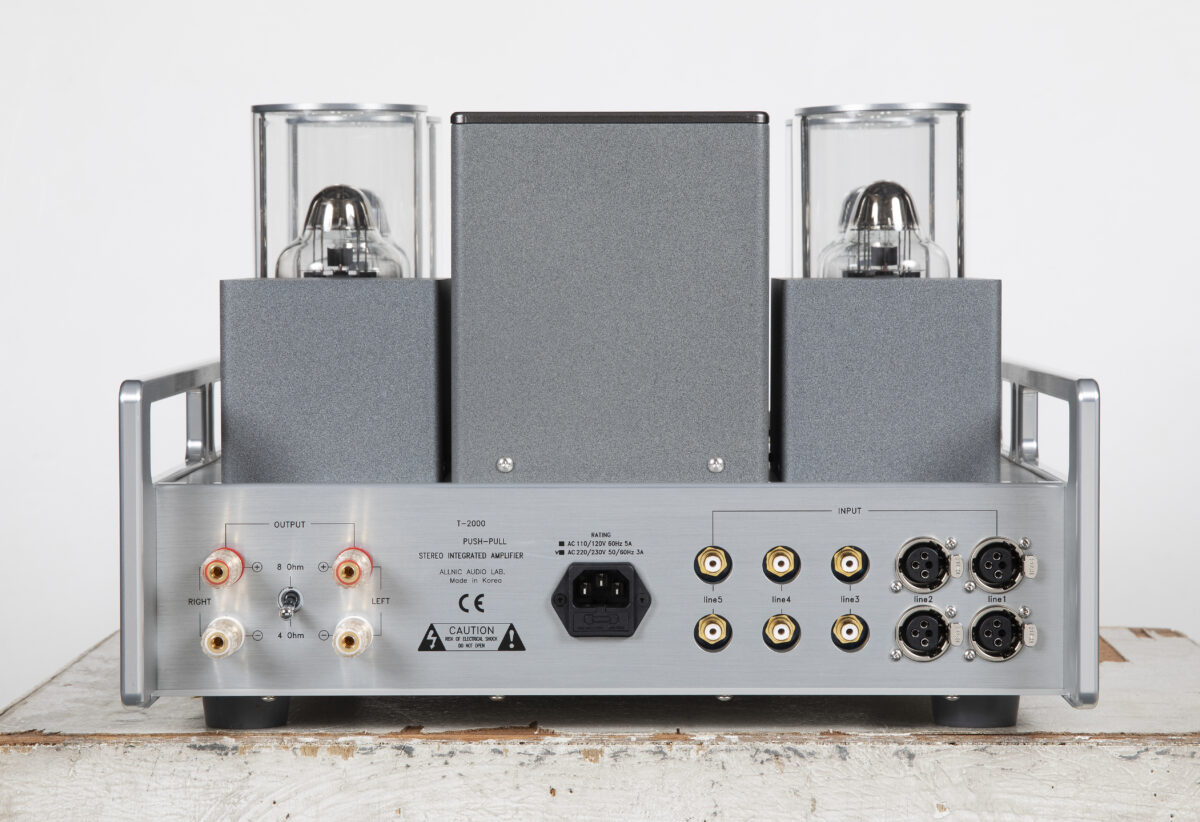

Inputs
Input Impedance
100kΩ (single-ended, unbalanced)
Input Sensitivity
1.3V for rated power
Voltage gain
+26dB
Röhren und Sicherungen
Tubes
KT170 x 4 (power triode); D3a x 4 (second stage drivers); 6J4 x 2 (first stage driver)
Fuses
0.5A, 250V, 20mm slow-blow (KT150's); 5A, 250V, 20mm slow-blow (IEC Mains)
Abmessungen und Gewicht
Dimensions (WDH)
440mm x 480mm x 300mm
Weight
36kg net
