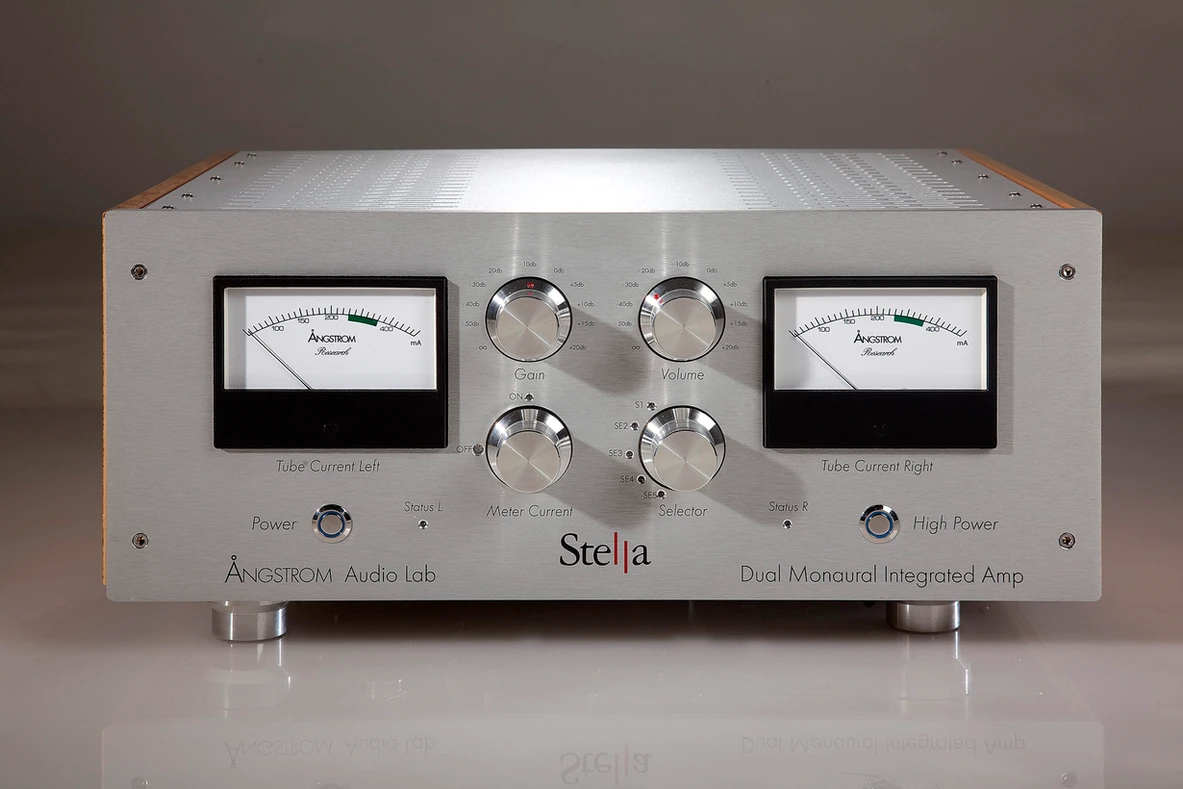

Angstrom - Stella Vollverstärker SIA 100
27.950 €
Nicht mehr verfügbar
Produktinformationen
- 100 Watt/ch in Pure Class A
- Push Pull triode operation
- Two output toroidal transformer per channel in circlotron connection
- Built entirely by hand
- Fully hand-wired point-to-point electronics with Silver/Copper wire, Teflon/Arlon Insulated MIL 16878-WTYPE E 200° High Temperature
Technical Specifications:
Inputs (configuration can be customized):
2x XLR
3x RCA
Output Power:
2x 100 Watt (8 ohm) in full power mode
2x 50 Watt (8 ohm) in half power mode
Circuit Detail:
Output stage in pure Class A, Push Pull triode operation (both full and half power)
Two Output Toroidal Transformer per Channel in Circlotron Connection
Total Power Output Transformers: 370 Watt
Pure Symmetric Balanced Circuit
Current Output Driver
Zero Feedback
6 Independent Power Supplies
2 Amorphous High Current Chokes (one per channel)
Tubes:
6x EL34 Output Tubes per Channel (12 total)
4x Ecc82 Input/Driver Stage per Channel (8 total)
Input Impedance:
Balanced 1M Ohm
Single Ended 470K Ohm
Hum & Noise:
less than 2.0 mV rms 88dB
PS Energy Storage:
280 Joules
Power Consumption At Max Power:
1000 Watt (370 in Idle)
Dimensions:
W 45.5cm, H 20cm, D 41cm
Weight:
41 KG
