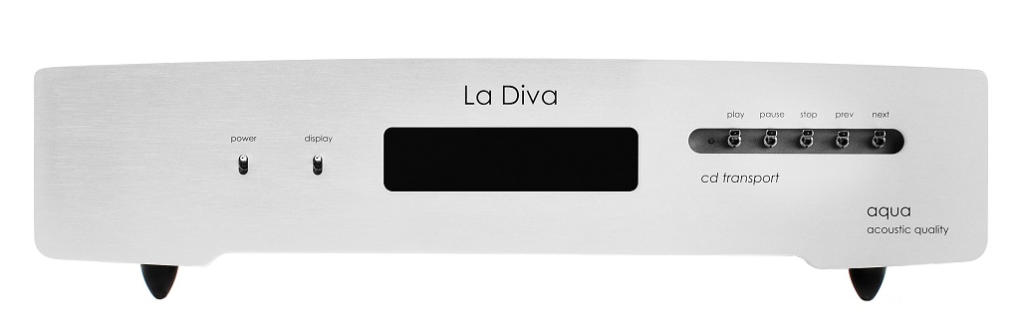

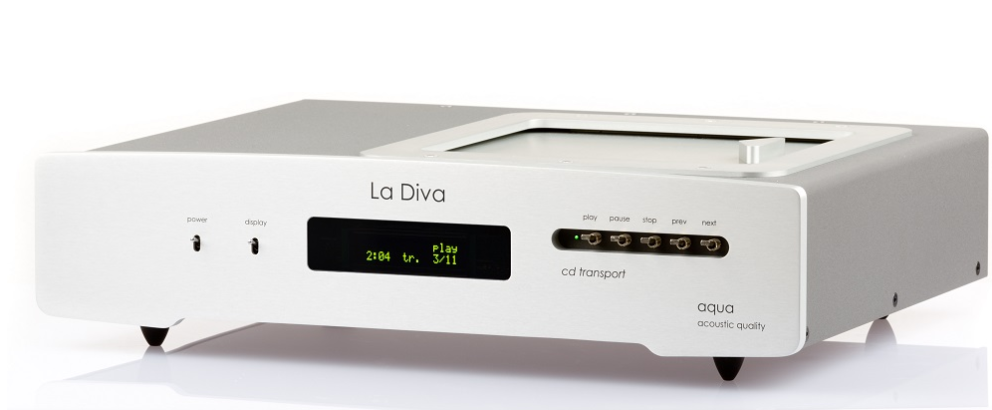

Aqua - La Diva M2 CD Transport

FEATURES

• High performance proprietary ISDC (Isolated Synchronous Discrete Circuit) digital decoding and clock manager
• Custom designed discrete circuit with high-speed photocouplers for Galvanic and magnetic isolation between CD drive unit and digital output
• Ultra massive chassis construction and newly developed high-rigidity sub chassis with Nextel for CD drive unit cancels internal and external acoustic and mechanical vibrations, enabling exceptionally accurate Red Book RF signal
• DC disc drive motor allows to read the data accurately and minimize Jitter
• Moplen clamp to avoid flywheel masses and vibrations
• Sophisticated signal processing technology assures excellent CD Red Book signal
• High-performance multi-stage voltage regulator (high-current stage for accurate servo DISC drive rotation, tracking and focus)
• Jitter free digital interface AQlink (I2S protocol), uncompromising digital connection to our DACs
• etherCON RJ45 (AQlink) output connection to DAC, employs CAT6 cable can connect both RJ45 and professional etherCON RJ45
• Separate custom-built toroidal transformers for digital and servo motors/actuators
• MODULAR DESIGN with upgradeable multi board system
• Precision Philips CD-Pro2 transport customized
• High-quality parts selected for sound quality: 105° long life capacitors, low noise Metal Foil ultra-precision resistors, metallized film pulse capacitor, ultra-fast diodes, halogen free cables

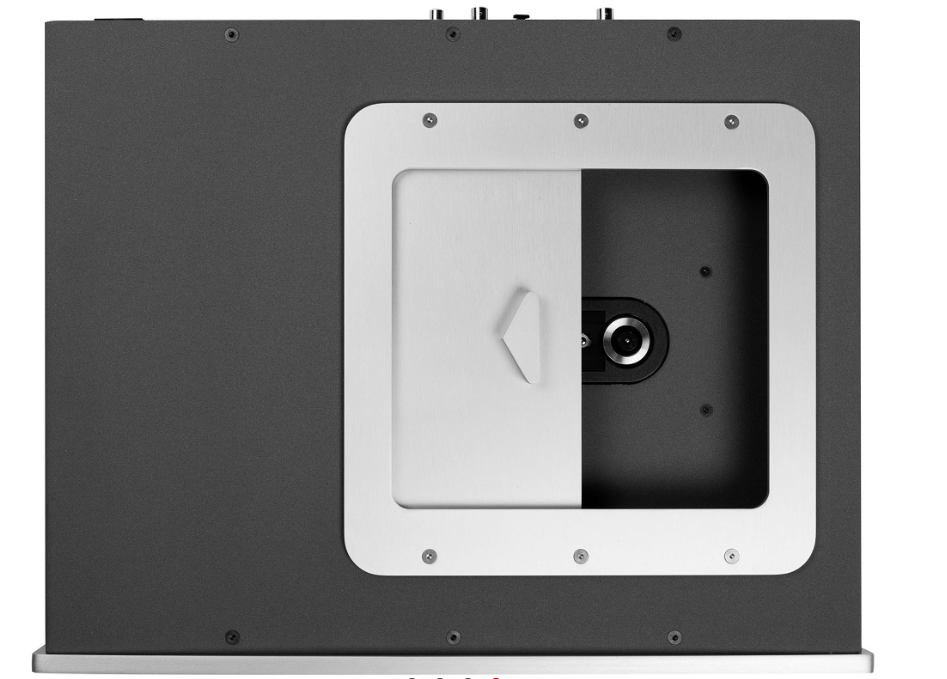

• Aluminum top loading tray machined from billet
• Non-magnetic low-resonance aluminum chassis with Nextel
• Field upgradeable firmware
• OLED display with user off-selectable illumination
• Designed and handmade in Italy

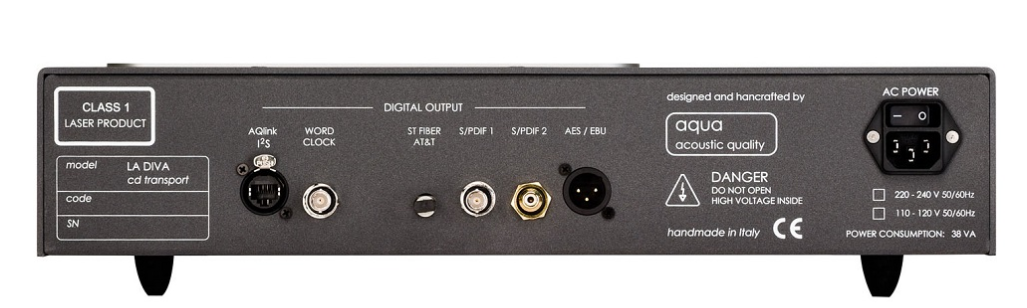

Output

• etherCON RJ45 - AQlink (I2S serial bus)
• XLR AES/EBU
• BNC coax (S/PDIF)
• RCA coax (S/PDIF)
• ST fiber (AT&T)
• BNC word clock
