Produktinformationen

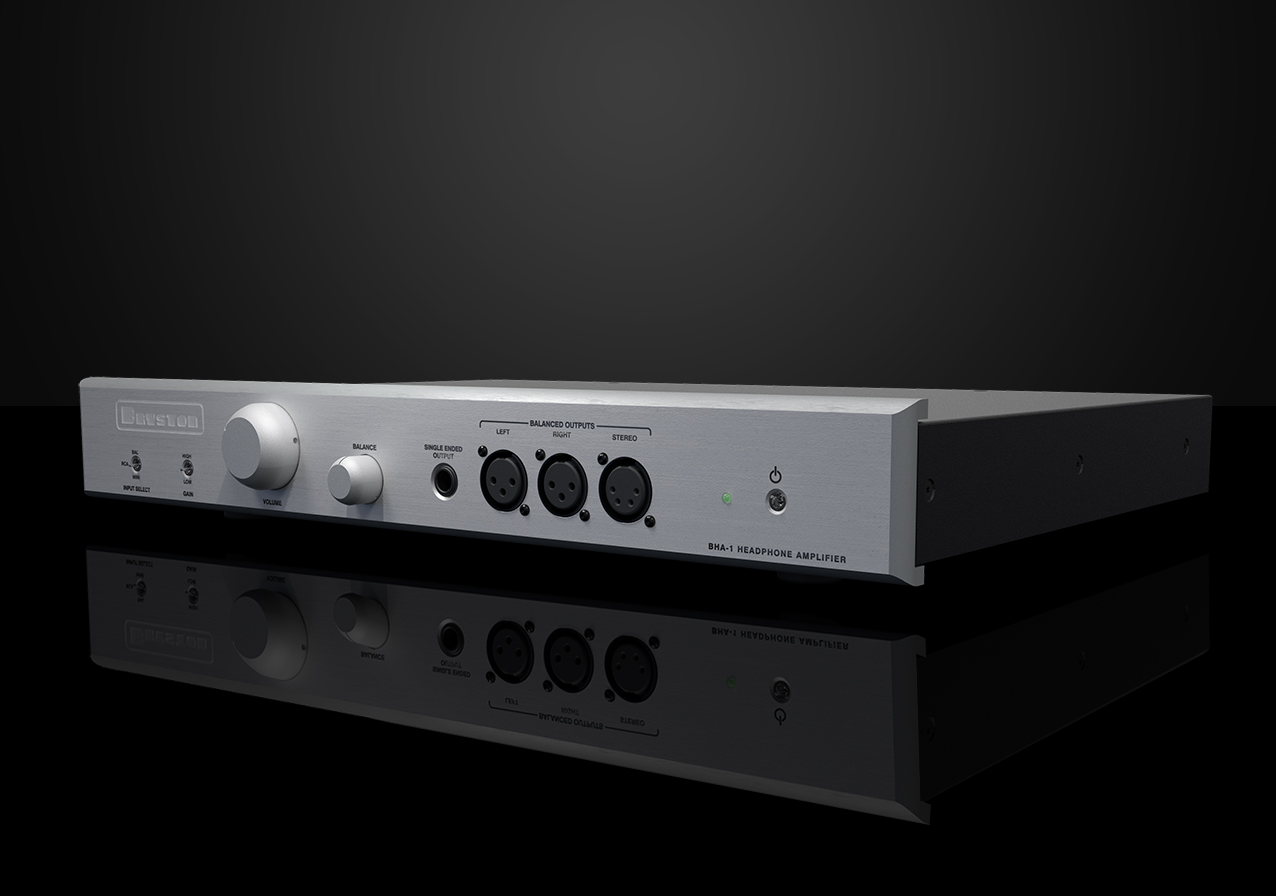

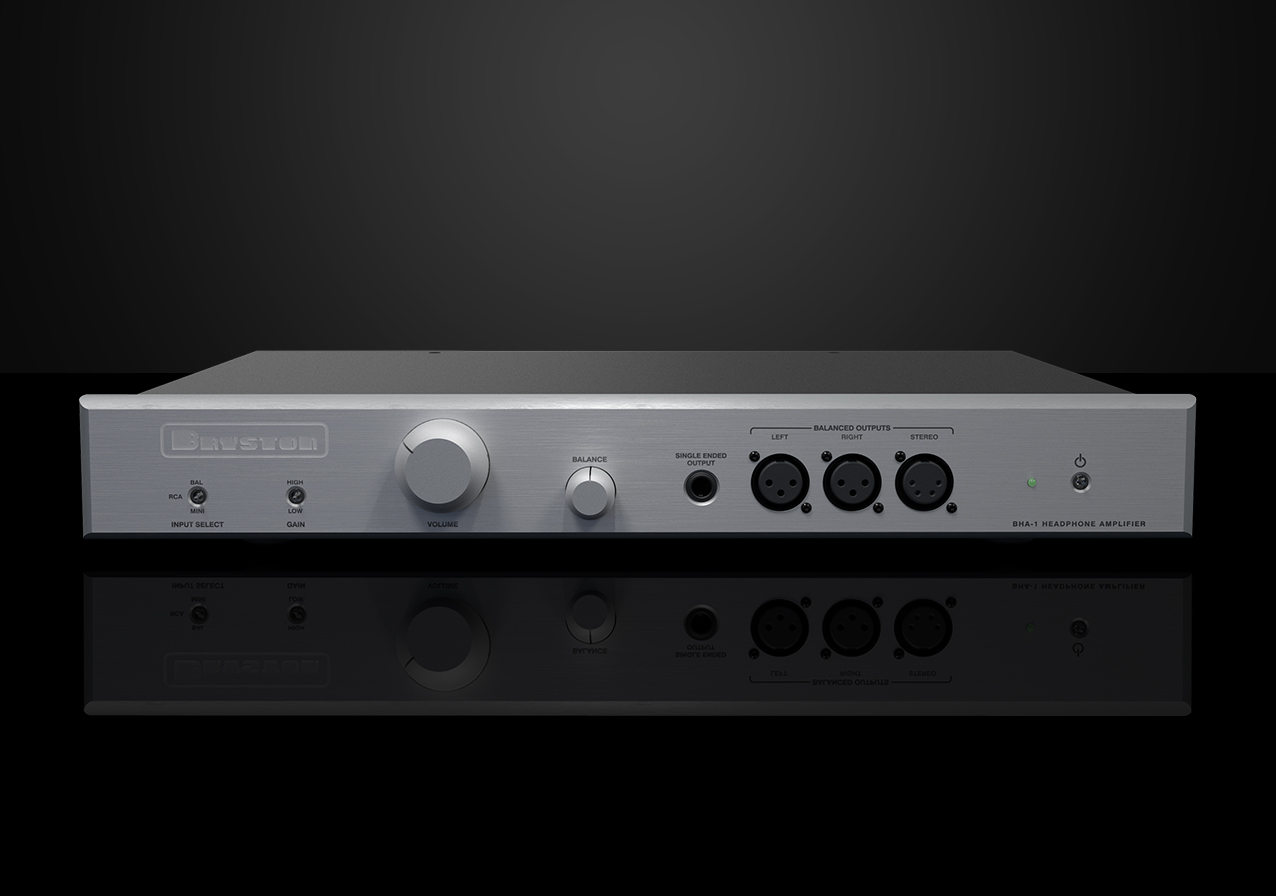

BHA-1 Balanced Headphone Amplifier

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston's reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.

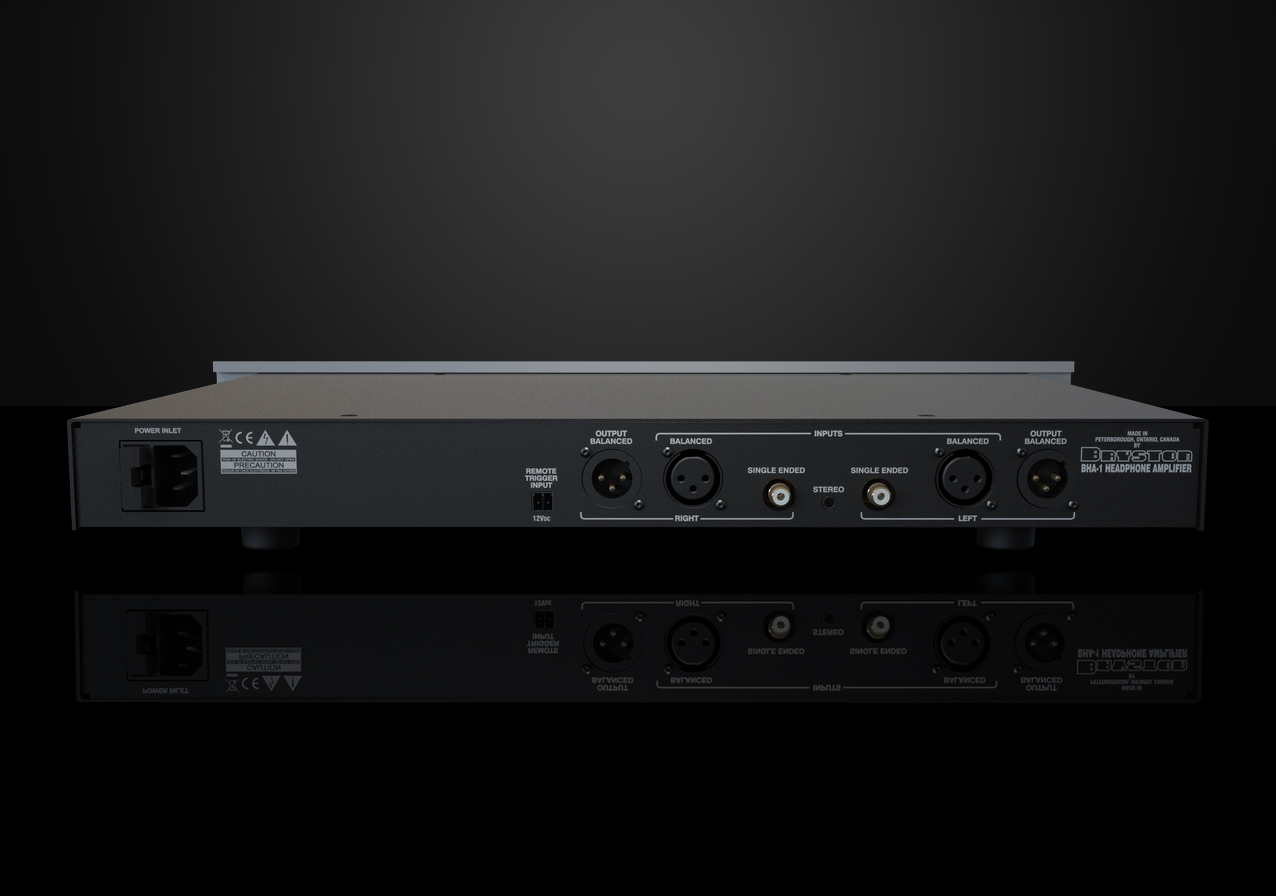

Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.)
Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack
Control: Remote Trigger Input (5 - 12V AC/DC @10mA)

Features:

  • Balanced outputs
  • Balanced dual mono circuitry
  • Left/Right balance control
  • Six fully discrete Class A Bryston operational amplifiers
  • 14dB or 20dB gain
  • 10k input impedance
  • High quality noble stereo volume control (laser trimmed)
  • Gold plated input and output connectors
  • Multiple headphone drive capability

Options:

  • Available with Silver or Black Faceplate (2U)
  • 17" or 19" Faceplate available
  • Rack Mountable Ears available
  • Locking mechanisms on Balanced XLR connectors

Awards:

  • Secrets Best of Awards 2017

Technische Daten

Anschlüsse
Eingänge Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack
Ausgänge Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack
Steuerung Remote Trigger Input (5 - 12V AC/DC @10mA)
Elektrische Eigenschaften
Ausgangsimpedanz 2 Ohms pro Op-Amp Treiber
Eingangimpedanz 10k
Verstärkung 14dB oder 20dB
Abmessungen (17" Faceplate)
Höhe 2.75" (2" ohne Füße) / 69.85mm (50.8mm ohne Füße)
Breite 17" / 431.8mm
Tiefe 12.25" / 311.15mm
Abmessungen (19" Faceplate)
Höhe 2.75" (2" ohne Füße) / 69.85mm (50.8mm ohne Füße)
Breite 19" / 482.6mm
Tiefe 12.25" / 311.15mm
Allgemein
Gewicht 13.25 lbs

Hersteller & Produktsicherheit

Hersteller Kontaktdaten
Name Bryston Ltd.
Anschrift 677 Neal Drive
Postleitzahl K9J 6X7
Stadt Peterborough
Bundesland / Staat Ontario
Land Kanada (CA)
Telefon +1 705-742-5325
E-Mail info@bryston.com
Informationen zum sicheren Umgang mit dem Produkt
PDF Download Sicherheitsdatenblatt
